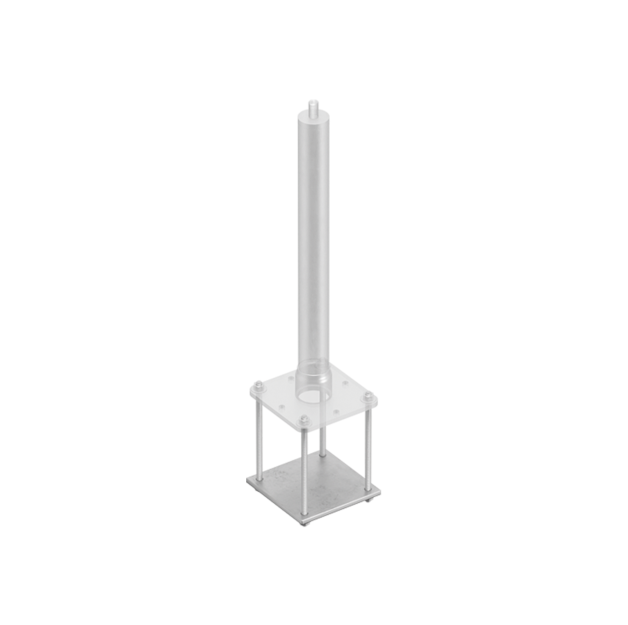

底座150mm立柱
TOWER
特点

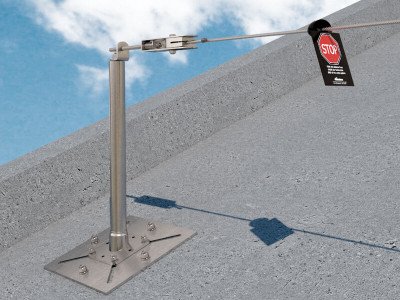

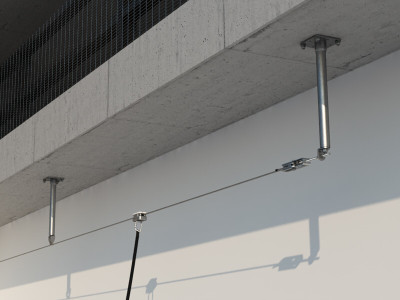

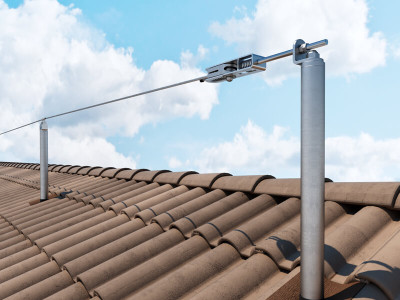

| Application | LIFE LINE, SINGLE POINT |
|---|---|

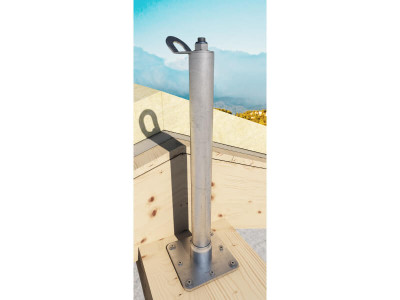

| Substructure | TIMBER, CONCRETE, STEEL |
| Field of use | MIN. TIMBER STRUCTURE 160 X 160MM, MIN. CONCRETE STRUCTURE 140MM, MIN. STEEL STRUCTURE 6MM |
| Number of workers | 4 |
| Material | S235JR ZINC-PLATED STEEL |
文件
| 澳大利亚认证 | |
|---|---|
| 符合性声明（DOC） | |
| 安全规程、安装和使用说明 | |
| File BIM.ifc | |
| File BIM.rfa | |
| 符合性声明（DOC） | |
| EAC certificate (anchor points) | |
| EAC certificate (anchor lines) |
操作规程
| 操作手册 | |
|---|---|
| 安装手册 |

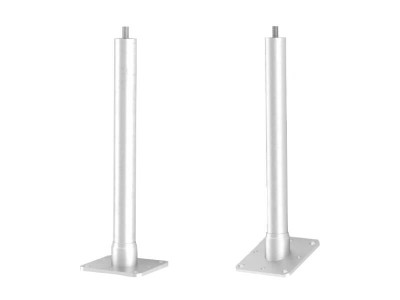

TOWER
| CODE | material | d₁
[mm]
|
B
[mm]
|
H
[mm]
|
L
[mm]
|
pcs. |
|---|---|---|---|---|---|---|
| TOWER300 | S235JR zinc-plated steel | 48 | 150 | 300 | 150 | 1 |
| TOWER400 | S235JR zinc-plated steel | 48 | 150 | 400 | 150 | 1 |
| TOWER500 | S235JR zinc-plated steel | 48 | 150 | 500 | 150 | 1 |
| TOWER600 | S235JR zinc-plated steel | 48 | 150 | 600 | 150 | 1 |
| TOWER22500 | S235JR zinc-plated steel | 48 | 150 | 500 | 150 | 1 |

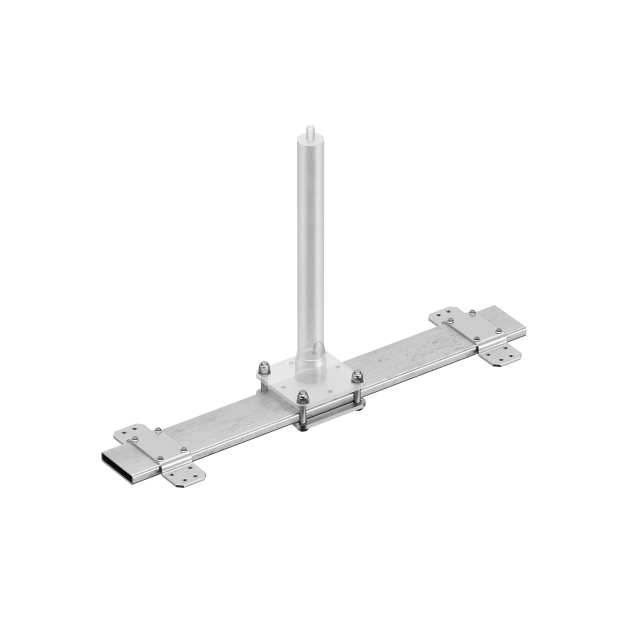

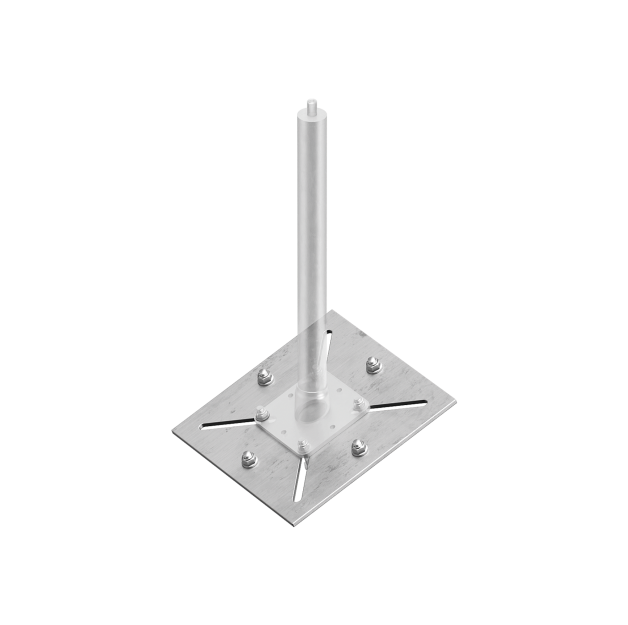

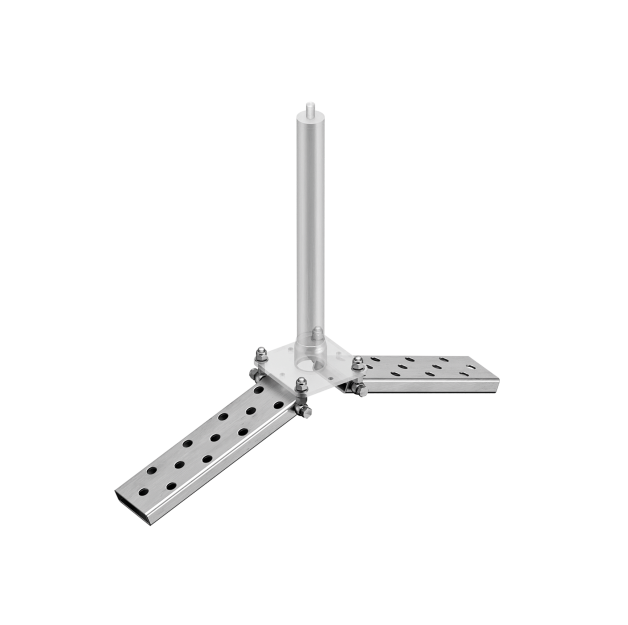

相关产品
